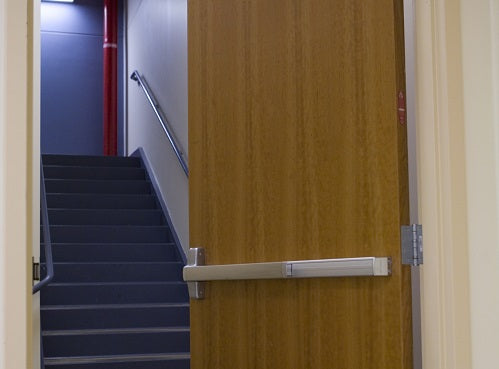

Von Duprin Exit Devices

Von Duprin is an Allegion company that manufactures exit devices of various kinds as well as electrical products. Von Duprin is known for bringing the first panic bar type device to the market in the early 1900's allowing for doors to be locked from the outside while allowing immediate egress from the inside. Von Duprin exit devices are recognized for their high quality and innovative technologies.

According to Allegion: "an independent study of more than 100 commercial facilities across the U.S. documented that Von Duprin exit devices require significantly less maintenance over a 30-year period than any other brand."

Here we will look at some of the most popular Von Duprin exit devices and options that are available. (Read our previous blog post about some exit device basics you should know)

98/99 Series Touch Bar Exit Devices

Von Duprin 98/99 series exit devices are the most popular door hardware where panic devices are required. 98 series exit devices have a smooth body case and the 99 series have a grooved body case. These exit devices are UL listed for panic hardware or fire hardware and will last for decades when installed properly. Standard hardware finishes are available to match other architectural details on a project. Von Duprin also offers many lever styles to match other locking hardware.   The standard lever trim functions available include:

• Key locks and unlocks outside lever. (Standard or Classroom function)
• Key retracts latchbolt. Lever is always rigid. (Nightlatch function)
• Lever is always active and requires no key. (Blank Escutcheon)
• Dummy lever trim that is always rigid. (Dummy trim)
• No outside trim (Exit only)

98/99 series exit devices are available as:

• Rim exit device
• Mortise exit device
• Surface mounted vertical rods (SVR)
• Concealed vertical rods (CVR)
• Concealed vertical cables (CVC)
• Three-point latching exit device

Popular electrical options include:

• Alarm Kit (ALK)
• The Chexit (CX) (aka Delayed Egress)
• Request to Exit (RX)
• Electric Latch Retraction (EL)
• Quiet Electric Latch Retraction (QEL)
• Electrified Lever (E996L)
• Latchbolt Monitoring (LX)

Von Duprin offers a narrow stile exit device that is very similar to the 98/99 series that is referred to as the 33A/35A series. The 33A/35A series has a more narrow latching mechanism for use on doors with narrow stiles.

22 Series Touch Bar Exit Devices

Von Duprin offers a more economical exit device with many of the key functions for an opening requiring an exit device. These exit devices have some of the same options available on the 98/99 series devices but are much more cost effective. The standard trim functions available include:

• Key locks and unlocks outside lever. (Standard or Classroom function)
• Key retracts latchbolt. Pull handle is always rigid. (Nightlatch function)
• Lever is always active and requires no key. (Blank Escutcheon)
• Dummy pull handle trim that is always rigid. (Dummy trim)
• No outside trim (Exit only)

22 series exit devices are available as:

• Rim exit device
• Surface mounted vertical rods (SVR)

Popular electrical options include:

• Alarm Kit (ALK)
• Request to Exit (RX)
• Latchbolt Monitoring (LX)

88 Series Crossbar Exit Devices

Von Duprin's 88 series crossbar exit devices have a long push bar that extends between the lock body mechanism and the hinge case. These exit devices provide a beautiful architectural finish to a space and are available in many of the most common hardware finishes and lever styles. These exit devices do not have many electrical options (except for on the mortise device or blank escutcheon trim) due to the small amount of "real estate" available in the lock and hinge cases of the exit device. The standard trim functions available include:

• Key locks and unlocks outside lever. (Standard or Classroom function)
• Lever will be locked when key is removed. (Nightlatch function)
• Lever is always active and requires no key. (Blank Escutcheon)
• Dummy pull handle trim that is always rigid. (Dummy trim)
• No outside trim (Exit only)

88 series exit devices are available as:

• Rim exit device
• Mortise exit device
• Surface mounted vertical rods (SVR)

Electrical options include:

• Electric Mortise Lock Device
• Electric Unlocking Outside Trim (Blank Escutcheon only)

Conclusion

These are only a few of the exit devices and options available from Von Duprin. Contact a sales rep at Beacon Commercial Door & Lock to find out how we can meet your needs with Von Duprin products as well as other Allegion brands.
