Hollow Metal Frames

Designed for strength and fire resistance. Hollow metal frames support a wide range of hardware and door configurations.

Expert Shop Technicians

Our team of experts, along with our state-of-the-art shop equipment, can provide you with custom frames to meet your project deadlines. Beacon is leading the way in this industry through our innovation and expertise.

Standard Hollow Metal Frames

Standard hollow metal frames are supplied factory primed for painting in the field.

Hollow metal frames can be either cold-rolled steel or A-60 galvannealed for corrosion resistance and are typically supplied in two thicknesses: 16-gauge or 14-gauge.

Metal frames come with 2-inch faces standard and can have an optional 4-inch head for masonry applications.

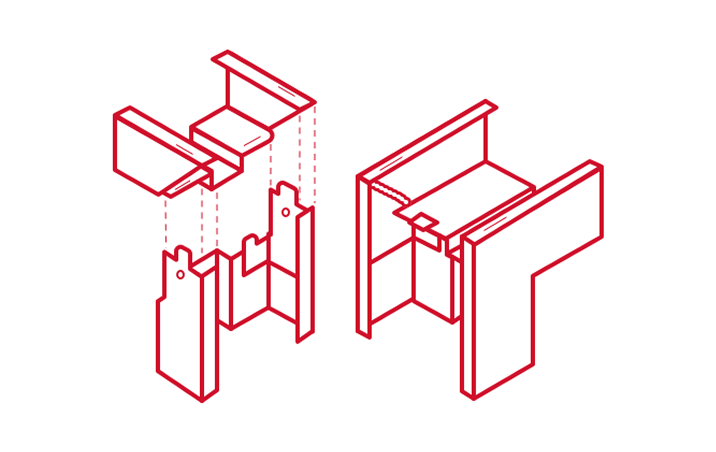

Knock-Down or Welded Frames?

Hollow metal frames can be shipped either knock-down or welded. Knock-down frames are sent as loose pieces and are set up in the field during installation. Welded frames are already welded together in our shop and are ready for installation upon delivery.

Also see our door and hardware offerings.

What is the Rough Opening?

Learn more about Hollow Metal Frames

Custom Hollow Metal Frames

We are a unique distributor because we have a high-power industrial laser cutter and an in-house hollow metal frame brake press as well as a shop capable of customizing frames to your specifications. That’s why we can get frames fabricated and delivered lightning fast without waiting on the factory’s longer lead times.

Learn About Our Shop

Replacing Existing Hollow Metal Frames

If existing frames are going to be replaced and existing doors are going to remain, you can begin the process by measuring the hinge and strike prep locations. Refer to these blog posts to get started on replacing existing frames.

Hardware Locations on Existing Doors

Reusing Existing Frames or Existing Doors

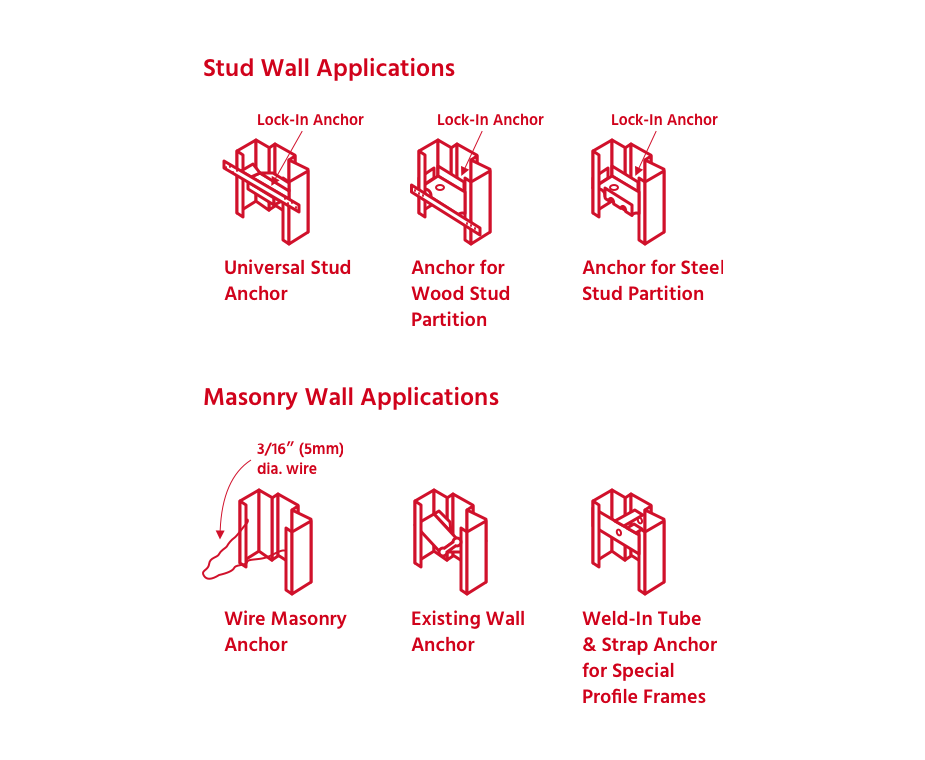

Hollow Metal Frame Anchors

Hollow metal frames will anchor to the walls they are installed in. The wall type and the wall thickness play a critical part in the type of frame you need.

Typical anchoring applications for new or existing walls include metal studs, wood studs, and masonry.

Types of Frame Anchors

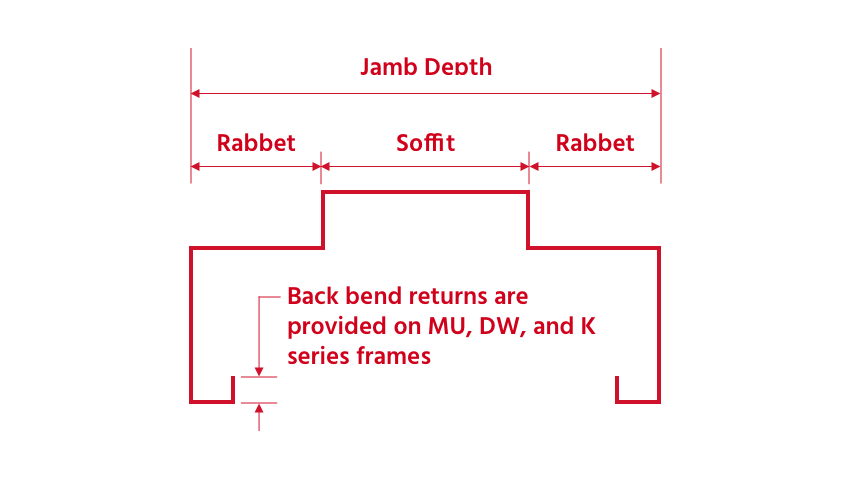

Hollow Metal Frame Terminology

Jamb depth, throat, mullions, soffit, and rabbets can sound pretty strange to anyone unfamiliar with frames, but they are important to the function of each frame.

Understanding the terms is vital to successfully specifying and supplying hollow metal frames.

Let us help clear up the confusion.
